The Ultimate Guide to Wire EDM: Precision, Applications, and Benefits
Wire Electrical Discharge Machining (Wire EDM) is a versatile and precise manufacturing process that uses electrical discharges to shape materials, particularly metals. This process is highly valued in industries where precision is critical, such as aerospace, medical device manufacturing, and toolmaking.
How Does Wire EDM Work?
Wire EDM involves a thin, electrically charged wire that erodes material from a workpiece. The wire moves along a programmed path while a series of electrical discharges remove material. This method allows for extremely fine details and complex shapes that would be challenging to achieve with traditional cutting methods.
Key Components of Wire EDM
-

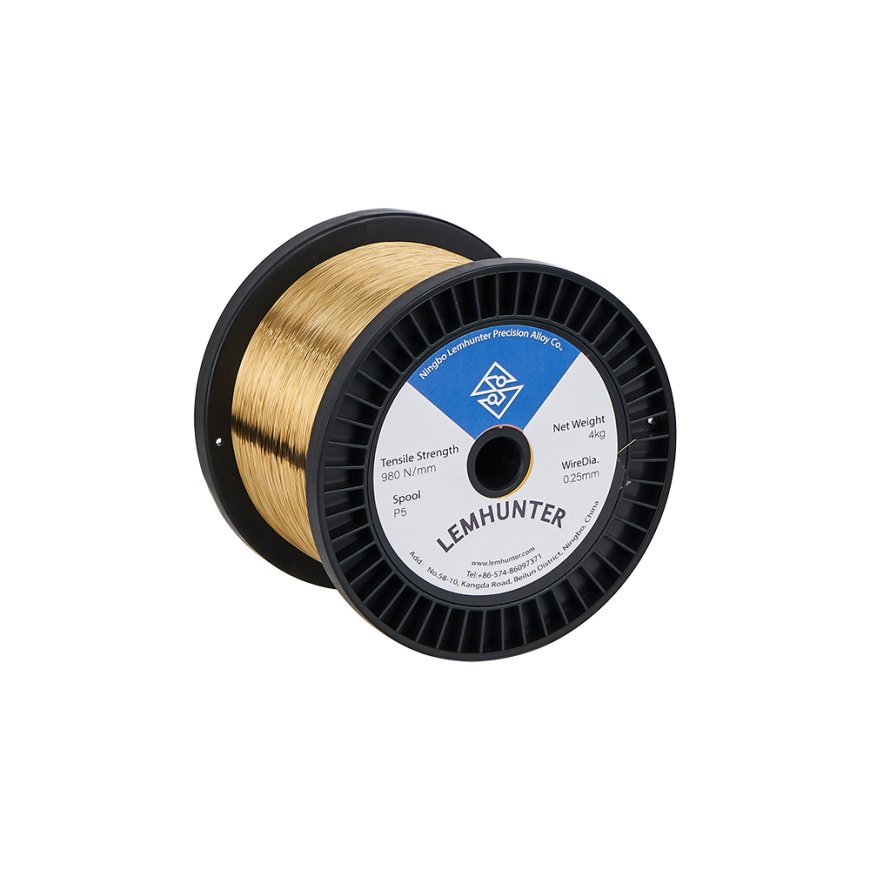

The Wire: A thin, continuous strand of metal, typically brass or copper, is used to cut through the material. It is continuously fed through the machine and held in tension.
-
The Workpiece: This is the material that needs to be cut or shaped. Most often, workpieces are made from conductive metals like steel, aluminum, or copper alloys.
-
The Power Supply: The power supply regulates the electrical discharges, ensuring they are of the correct intensity and duration for the specific material and cutting task.
-
The Dielectric Fluid: A dielectric fluid, usually deionized water, is used to cool the workpiece and remove debris generated by the electrical discharges.
Wire EDM Advantages
-
High Precision: Wire EDM is known for its ability to produce intricate designs with extremely tight tolerances, often down to a few microns.
-
Complex Geometries: Unlike traditional machining methods, Wire EDM can cut extremely complex shapes, including sharp internal angles and fine features.
-
Minimal Heat Affected Zone: Since the process involves no physical contact between the wire and the material, theres no mechanical stress, and the heat affected zone is minimal, preventing warping and distortion.
-
No Tool Wear: The wire used in EDM doesnt experience wear like conventional cutting tools, ensuring consistent performance over time.
-
Versatility: Wire EDM can cut a wide range of materials, including hardened steel, titanium, and other tough alloys, making it ideal for industries such as aerospace, automotive, and medical.
Applications of Wire EDM
-
Tool and Die Making: Wire EDM is widely used to create molds and dies with intricate geometries that would be difficult or impossible to produce using traditional machining methods.
-
Aerospace Components: The aerospace industry relies on Wire EDM for producing complex and lightweight parts with tight tolerances, such as turbine blades, engine components, and structural elements.
-
Medical Device Manufacturing: Wire EDM is crucial in manufacturing precision medical devices, such as implants, surgical tools, and diagnostic equipment, where accuracy is vital for patient safety.
-
Prototyping: Wire EDM is an excellent tool for rapid prototyping of metal parts, particularly when the final product requires complex features or unique shapes.
-
Electronics Industry: The precision of Wire EDM makes it ideal for producing small and intricate components used in electronics, including connectors, filters, and sensors.
Wire EDM vs. Traditional Machining
Wire EDM stands out from traditional machining methods, such as milling or turning, in its ability to create complex shapes without the need for physical cutting tools. It excels in applications requiring high precision and can handle materials that are difficult to machine using conventional methods, like hardened steel or superalloys. Furthermore, while traditional machining often generates significant heat and can warp the material, Wire EDM minimizes thermal impact.
Wire EDM vs. Laser Cutting
Both Wire EDM and laser cutting are used for precision cutting, but they have different advantages. Wire EDM is ideal for cutting thicker metals, and it offers better precision for complex cuts. On the other hand, laser cutting is typically faster and can cut both metal and non-metal materials but may not match the precision of Wire EDM in complex geometries.
Maintaining a Wire EDM Machine
Proper maintenance is essential to ensure the longevity and efficiency of a Wire EDM machine. Regular checks on the wire feed system, dielectric fluid quality, and electrical connections are crucial. Additionally, keeping the machine clean and replacing worn components helps maintain its performance.
Conclusion
Wire EDM is a powerful and versatile manufacturing process that delivers unmatched precision for a variety of industries. Its ability to cut complex shapes with tight tolerances makes it indispensable for tool and die making, aerospace, medical devices, and more. As technology continues to evolve, Wire EDM remains an essential tool for advanced manufacturing.
